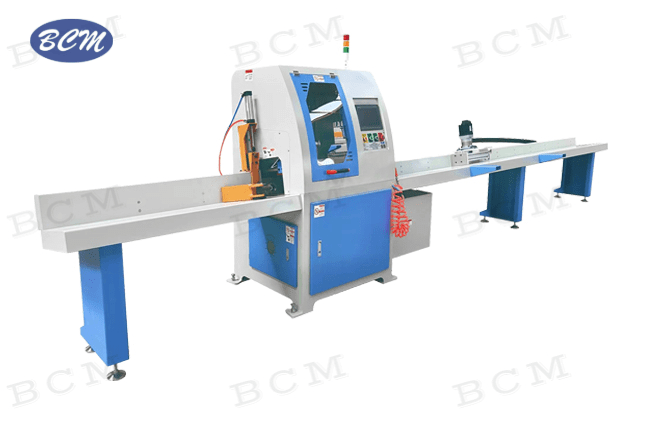

Wooden cutting machine BC609
This machine realizes automatic pushing, automatic sizing, automatic sawing,
Use PLC and servo motor control, touch screen operation.
Input the size on the touch screen, manual loading and unloading, no need to manually set the size, manual sawing, the system automatically according to the set size, automatically push the wood, automatic sawing.
Suitable for large quantities of wood, wood sawing, efficiency greatly improved, intelligent and efficient.
型號 Model | BC609 |
主機尺寸 Main machine dimensions | 1000*900*1650(mm) |
進給平臺長度 Input belt length | 2M/4M/6M（Customize） |
卸貨平臺長度 Output belt length | 1.5M |
最大切割尺寸 Maximum cutting size | 長度任意L*寬W 200*高H 120mm |
適用的木方規(guī)格 Suitable wood size | 長L可以任意調節(jié)(Customize) (可加長) 寬W10-200mm(可多條) 高H 10-120mm(可多條) |
鋸切精度 Truncation error within | ±0.3mm |
功率 Power | 6.8KW |
鋸切速度 Blade speed | 3-5s/次(可調) |
進給速度 & 倒擋速度 Feed speed & Reverse speed | 0-60 M/min ; 0-70 M/min |
氣壓 Air pressure | 0.6MPa |
主機重量 weight | 1300.00KG |
